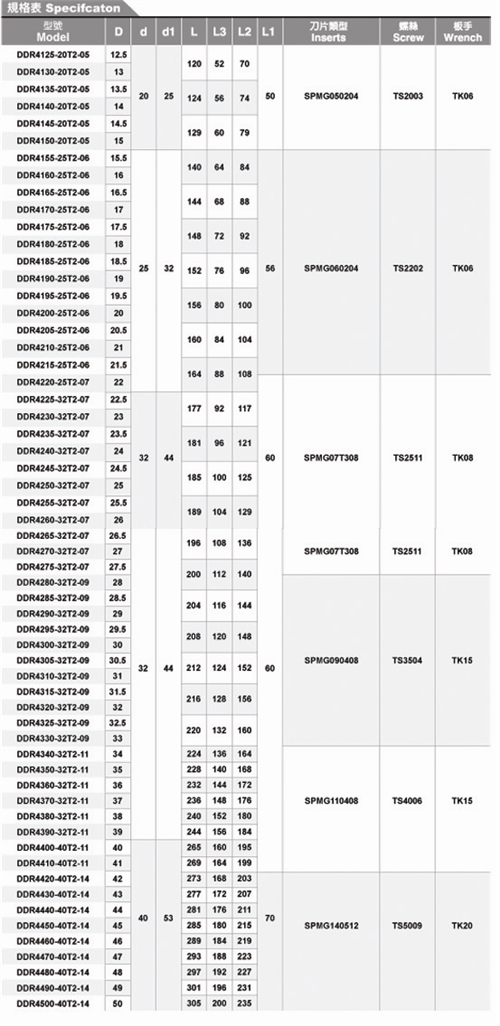

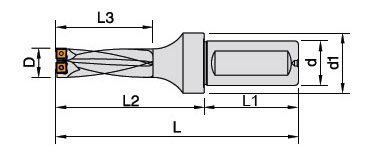

Model | D | d | d1 | L | L3 | L2 | L1 | Inserts | Screw | Wrench |
---|---|---|---|---|---|---|---|---|---|---|
DDR4125-20T2-5 | 12.5 | 20 | 25 | 120 | 52 | 70 | 50 | SPMG050204 | TS2003 | TK06 |
DDR4130-20T2-5 | 13 | 20 | 25 | 120 | 52 | 70 | 50 | SPMG050204 | TS2003 | TK06 |
DDR4135-20T2-5 | 13.5 | 20 | 25 | 124 | 56 | 74 | 50 | SPMG050204 | TS2003 | TK06 |
DDR4140-20T2-5 | 14 | 20 | 25 | 124 | 56 | 74 | 50 | SPMG050204 | TS2003 | TK06 |
DDR4145-20T2-5 | 14.5 | 20 | 25 | 129 | 60 | 79 | 50 | SPMG050204 | TS2003 | TK06 |
DDR4150-20T2-5 | 15 | 20 | 25 | 129 | 60 | 79 | 50 | SPMG050204 | TS2003 | TK06 |
DDR4155-25T2-6 | 15.5 | 25 | 32 | 140 | 64 | 84 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4160-25T2-6 | 16 | 25 | 32 | 140 | 64 | 84 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4165-25T2-6 | 16.5 | 25 | 32 | 144 | 68 | 88 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4170-25T2-6 | 17 | 25 | 32 | 144 | 68 | 88 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4175-25T2-6 | 17.5 | 25 | 32 | 148 | 72 | 92 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4180-25T2-6 | 18 | 25 | 32 | 148 | 72 | 92 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4185-25T2-6 | 18.5 | 25 | 32 | 152 | 76 | 96 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4190-25T2-6 | 19 | 25 | 32 | 152 | 76 | 96 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4195-25T2-6 | 19.5 | 25 | 32 | 158 | 80 | 100 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4200-25T2-6 | 20 | 25 | 32 | 158 | 80 | 100 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4205-25T2-6 | 20.5 | 25 | 32 | 160 | 84 | 104 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4210-25T2-6 | 21 | 25 | 32 | 160 | 84 | 104 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4215-25T2-6 | 21.5 | 25 | 32 | 164 | 88 | 108 | 56 | SPMG060204 | TS2202 | TK06 |
DDR4220-25T2-7 | 22 | 25 | 32 | 164 | 88 | 108 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4225-32T2-7 | 22.5 | 32 | 44 | 177 | 92 | 117 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4230-32T2-7 | 23 | 32 | 44 | 177 | 92 | 117 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4235-32T2-7 | 23.5 | 32 | 44 | 181 | 96 | 121 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4240-32T2-7 | 24 | 32 | 44 | 181 | 96 | 121 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4245-32T2-7 | 24.5 | 32 | 44 | 185 | 100 | 125 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4250-32T2-7 | 25 | 32 | 44 | 185 | 100 | 125 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4255-32T2-7 | 25.5 | 32 | 44 | 189 | 104 | 129 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4260-32T2-7 | 26 | 32 | 44 | 189 | 104 | 129 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4265-32T2-7 | 26.5 | 32 | 44 | 196 | 108 | 136 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4270-32T2-7 | 27 | 32 | 44 | 196 | 108 | 136 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4275-32T2-7 | 27.5 | 32 | 44 | 200 | 112 | 140 | 60 | SPMG07T308 | TS2511 | TK08 |
DDR4280-32T2-9 | 28 | 32 | 44 | 200 | 112 | 140 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4285-32T2-9 | 28.5 | 32 | 44 | 204 | 116 | 144 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4290-32T2-9 | 29 | 32 | 44 | 204 | 116 | 144 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4295-32T2-9 | 29.5 | 32 | 44 | 208 | 120 | 148 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4300-32T2-9 | 30 | 32 | 44 | 208 | 120 | 148 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4305-32T2-9 | 30.5 | 32 | 44 | 212 | 124 | 152 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4310-32T2-9 | 31 | 32 | 44 | 212 | 124 | 152 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4315-32T2-9 | 31.5 | 32 | 44 | 216 | 128 | 156 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4320-32T2-9 | 32 | 32 | 44 | 216 | 128 | 156 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4325-32T2-9 | 32.5 | 32 | 44 | 220 | 132 | 160 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4330-32T2-9 | 33 | 32 | 44 | 220 | 132 | 160 | 60 | SPMG090408 | TS3504 | TK15 |
DDR4340-32T2-11 | 34 | 32 | 44 | 224 | 136 | 164 | 60 | SPMG110408 | TS4006 | TK15 |
DDR4350-32T2-11 | 35 | 32 | 44 | 228 | 140 | 168 | 60 | SPMG110408 | TS4006 | TK15 |
DDR4360-32T2-11 | 36 | 32 | 44 | 232 | 144 | 172 | 60 | SPMG110408 | TS4006 | TK15 |
DDR4370-32T2-11 | 37 | 32 | 44 | 236 | 148 | 176 | 60 | SPMG110408 | TS4006 | TK15 |
DDR4380-32T2-11 | 38 | 32 | 44 | 240 | 152 | 180 | 60 | SPMG110408 | TS4006 | TK15 |
DDR4390-32T2-11 | 39 | 32 | 44 | 244 | 156 | 184 | 60 | SPMG110408 | TS4006 | TK15 |
DDR4400-40T2-11 | 40 | 40 | 53 | 265 | 160 | 195 | 60 | SPMG110408 | TS4006 | TK15 |
DDR4410-40T2-11 | 41 | 40 | 53 | 269 | 164 | 199 | 60 | SPMG110408 | TS4006 | TK15 |
DDR4420-40T2-14 | 42 | 40 | 53 | 273 | 168 | 203 | 70 | SPMG140512 | TS5009 | TK20 |
DDR4430-40T2-14 | 43 | 40 | 53 | 277 | 172 | 207 | 70 | SPMG140512 | TS5009 | TK20 |
DDR4440-40T2-14 | 44 | 40 | 53 | 281 | 176 | 211 | 70 | SPMG140512 | TS5009 | TK20 |
DDR4450-40T2-14 | 45 | 40 | 53 | 285 | 180 | 215 | 70 | SPMG140512 | TS5009 | TK20 |
DDR4460-40T2-14 | 46 | 40 | 53 | 289 | 184 | 219 | 70 | SPMG140512 | TS5009 | TK20 |
DDR4470-40T2-14 | 47 | 40 | 53 | 293 | 188 | 223 | 70 | SPMG140512 | TS5009 | TK20 |
DDR4480-40T2-14 | 48 | 40 | 53 | 297 | 192 | 227 | 70 | SPMG140512 | TS5009 | TK20 |
DDR4490-40T2-14 | 49 | 40 | 53 | 301 | 196 | 231 | 70 | SPMG140512 | TS5009 | TK20 |
DDR4500-40T2-14 | 50 | 40 | 53 | 305 | 200 | 235 | 70 | SPMG140512 | TS5009 | TK20 |

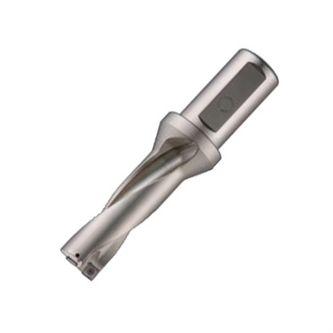

DDR 4D HIGH SPEED DRILL |
------------------------------------------------------ |
4D HIGH SPEED DRILL |
