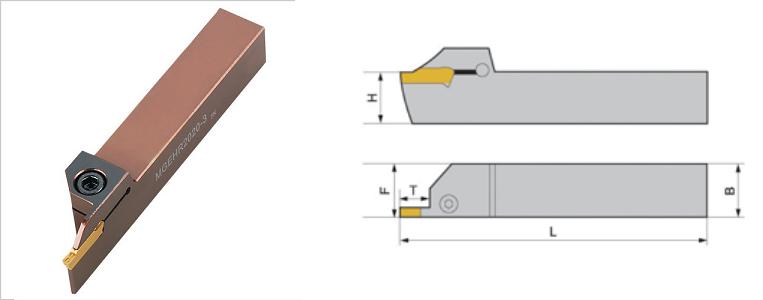

Model | H=(h) | W | L | S | T-Max | Inser | Screw | Wrench |
---|---|---|---|---|---|---|---|---|
MGEHR/L1212-2 | 12 | 12 | 100 | 14.25 | 14 | MGMN200-G/M | M5*16 | TW40L |
MGEHR/L1616-1.5 | 16 | 16 | 100 | 16.25 | 14 | MGMN150-G | M5*16 | TW20L |
MGEHR/L1616-2 | 16 | 16 | 100 | 16.25 | 14 | MGMN200-G/M | M5*16 | TW40L |
MGEHR/L1616-2.5 | 16 | 16 | 100 | 16.3 | 16 | MGMN250-G/M | M5*16 | TW40L |
MGEHR/L1616-3 | 16 | 16 | 100 | 16.35 | 18 | MGMN300-M | M6*16 | TW50L |
MGEHR/L2020-1.5 | 20 | 20 | 125 | 20.25 | 14 | MGMN150-G | M5*16 | TW20L |
MGEHR/L2020-2 | 20 | 20 | 125 | 20.25 | 14 | MGMN200-G/M | M5*16 | TW40L |
MGEHR/L2020-2.5 | 20 | 20 | 125 | 20.3 | 16 | MGMN250-G/M | M5*16 | TW40L |
MGEHR/L2020-3 | 20 | 20 | 125 | 20.4 | 18 | MGMN300-M | M6*17 | TW50L |
MGEHR/L2020-3-T10 | 20 | 20 | 125 | 20.4 | 10 | MGMN300-M | M6*18 | TW50L |
MGEHR/L2020-4 | 20 | 20 | 125 | 20.4 | 18 | MGMN400-M | M6*23 | TW50L |
MGEHR/L2020-4-T10 | 20 | 20 | 125 | 20.4 | 10 | MGMN400-M | M6*24 | TW50L |
MGEHR/L2020-5 | 20 | 20 | 150 | 20.5 | 23 | MGMN500-M | M6*29 | TW50L |
MGEHR/L2020-5-T15 | 20 | 20 | 150 | 20.5 | 15 | MGMN500-M | M6*30 | TW50L |
MGEHR/L2020-6 | 20 | 20 | 125 | 20.6 | 23 | MGMN600-M | M6*35 | TW50L |
MGEHR/L2020-6-T15 | 20 | 20 | 125 | 20.6 | 15 | MGMN600-M | M6*36 | TW50L |
MGEHR/L2525-1.5 | 25 | 25 | 150 | 25.25 | 14 | MGMN150-G | M5*16 | TW20L |
MGEHR/L2525-2 | 25 | 25 | 150 | 25.25 | 14 | MGMN200-G/M | M5*16 | TW40L |
MGEHR/L2525-2.5 | 25 | 25 | 150 | 25.3 | 16 | MGMN250-G/M | M5*16 | TW40L |
MGEHR/L2525-3 | 25 | 25 | 150 | 25.4 | 18 | MGMN300-M | M6*19 | TW50L |
MGEHR/L2525-3-T10 | 25 | 25 | 150 | 25.4 | 10 | MGMN300-M | M6*20 | TW50L |
MGEHR/L2525-4 | 25 | 25 | 150 | 25.4 | 18 | MGMN400-M | M6*25 | TW50L |
MGEHR/L2525-4-T10 | 25 | 25 | 150 | 25.4 | 10 | MGMN400-M | M6*26 | TW50L |
MGEHR/L2525-5 | 25 | 25 | 150 | 25.5 | 23 | MGMN500-M | M6*31 | TW50L |
MGEHR/L2525-5-T15 | 25 | 25 | 150 | 25.5 | 15 | MGMN500-M | M6*32 | TW50L |
MGEHR/L2525-6 | 25 | 25 | 150 | 25.6 | 23 | MGMN600-M | M6*37 | TW50L |
MGEHR/L2525-6A | 25 | 25 | 150 | 25.6 | 23 | MRGN600-A | M6*45 | TW50L |
MGEHR/L2525-6A-T15 | 25 | 25 | 150 | 25.6 | 15 | MRGN600-A | M6*46 | TW50L |
MGEHR/L2525-6-T15 | 25 | 25 | 150 | 25.6 | 15 | MGMN600-M | M6*38 | TW50L |
MGEHR/L2525-8 | 25 | 25 | 150 | 26.1 | 28 | MGMN800-M | M6*41 | TW50L |
MGEHR/L2525-8A | 25 | 25 | 150 | 26.1 | 28 | MRGN800-A | M6*49 | TW50L |
MGEHR/L2525-8A-T15 | 25 | 25 | 150 | 26.1 | 16 | MRGN800-A | M6*50 | TW50L |
MGEHR/L2525-8-T15 | 25 | 25 | 150 | 26.1 | 15 | MGMN800-M | M6*42 | TW50L |
MGEHR/L3232-3 | 32 | 32 | 170 | 32.4 | 18 | MGMN300-M | M6*21 | TW50L |
MGEHR/L3232-3-T10 | 32 | 32 | 170 | 32.4 | 10 | MGMN300-M | M6*22 | TW50L |
MGEHR/L3232-4 | 32 | 32 | 170 | 32.4 | 18 | MGMN400-M | M6*27 | TW50L |
MGEHR/L3232-4-T10 | 32 | 32 | 170 | 32.4 | 10 | MGMN400-M | M6*28 | TW50L |
MGEHR/L3232-5 | 32 | 32 | 170 | 32.5 | 23 | MGMN500-M | M6*33 | TW50L |
MGEHR/L3232-5-T15 | 32 | 32 | 170 | 32.5 | 15 | MGMN500-M | M6*34 | TW50L |
MGEHR/L3232-6 | 32 | 32 | 170 | 32.6 | 23 | MGMN600-M | M6*39 | TW50L |
MGEHR/L3232-6A | 32 | 32 | 170 | 32.6 | 23 | MRGN600-A | M6*47 | TW50L |
MGEHR/L3232-6A-T15 | 32 | 32 | 170 | 32.6 | 15 | MRGN600-A | M6*48 | TW50L |
MGEHR/L3232-6-T15 | 32 | 32 | 170 | 32.6 | 15 | MGMN600-M | M6*40 | TW50L |
MGEHR/L3232-8 | 32 | 32 | 170 | 33.1 | 28 | MGMN800-M | M6*43 | TW50L |
MGEHR/L3232-8A | 32 | 32 | 170 | 33.1 | 28 | MRGN800-A | M6*51 | TW50L |
MGEHR/L3232-8A-T15 | 32 | 32 | 170 | 33.1 | 15 | MRGN800-A | M6*52 | TW50L |
MGEHR/L3232-8-T15 | 32 | 32 | 170 | 33.1 | 16 | MGMN800-M | M6*44 | TW50L |
