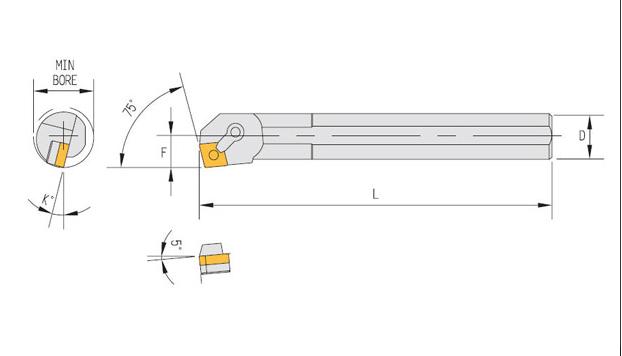

Model | Insert | D | F | L | B | K° |
---|---|---|---|---|---|---|
S20R-MCKNR/L12 | CNMG1204 | 20 | 13 | 200 | 25 | 17° |
S25R-MCKNR/L12 | CNMG1204 | 25 | 17 | 200 | 32 | 14° |
S32S-MCKNR/L12 | CNMG1204 | 32 | 22 | 250 | 40 | 14° |
S40T-MCKNR/L12 | CNMG1204 | 40 | 27 | 300 | 50 | 12° |
S50U-MCKNR/L12 | CNMG1204 | 50 | 35 | 350 | 63 | 12° |
Product Specifications
Order No. | Insert | Dimensions | Parts | Wrench | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Right / Left | D | F | L | B | K° | |||||||
S20R-MCKNR/L12 | CNMG1204 | 20 | 13 | 200 | 25 | 17° | - | LCS-511 | CP50-26 | CS7-5018 | LW025 | - |
S25R-MCKNR/L12 | CNMG1204 | 25 | 17 | 200 | 32 | 14° | - | LCS-511 | CP50-22 | CS7-6024 | LW025 | LW030 |
S32S-MCKNR/L12 | CNMG1204 | 32 | 22 | 250 | 40 | 14° | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
S40T-MCKNR/L12 | CNMG1204 | 40 | 27 | 300 | 50 | 12° | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
S50U-MCKNR/L12 | CNMG1204 | 50 | 35 | 350 | 63 | 12° | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
