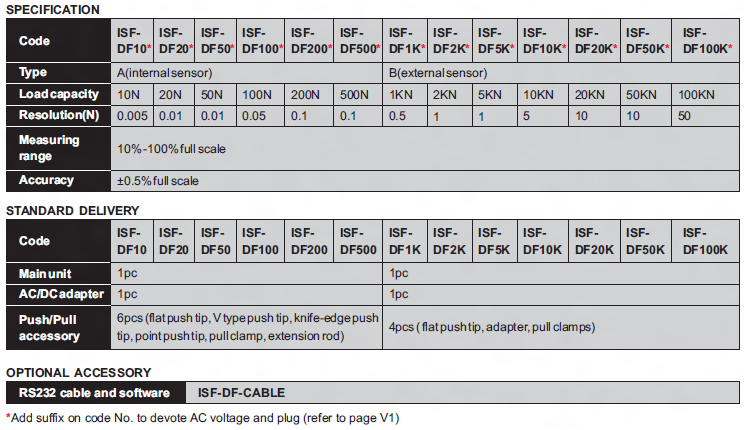

Model | Type | Load. capacity | Resolution (N) | Measuring. range | Accuracy | Main.unit | AC/DC. adapter | Push/Pull accessory |
---|---|---|---|---|---|---|---|---|

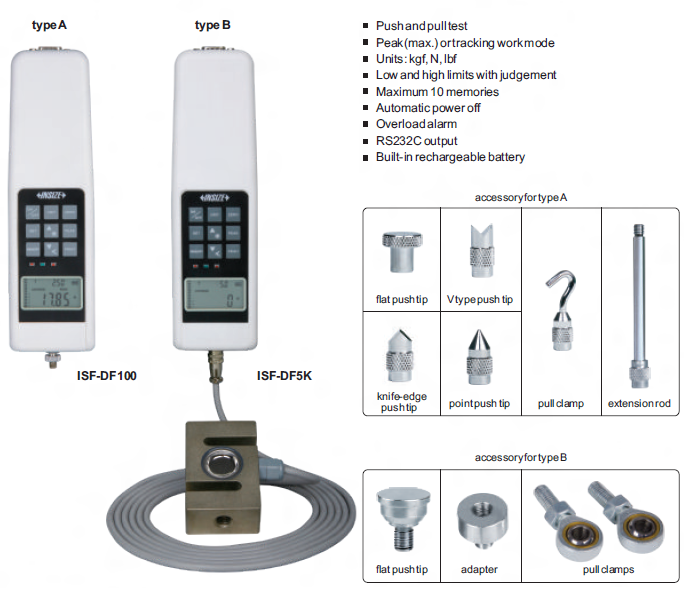

1.1-ISFDF10* | A(internal. sensor) | 10N | 0.005 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 6pcs(flat.push.tip, V.type.push.tip, knife-edge.push.tip ,point.push.tip, pull.clamp, extension.rod) |
1.2-ISFDF20* | A(internal. sensor) | 20N | 0.01 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 6pcs(flat.push.tip, V.type.push.tip, knife-edge.push.tip, point.push.tip, pull.clamp, extension.rod) |
1.3-ISFDF50* | A(internal. sensor) | 50N | 0.01 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 6pcs(flat.push.tip, V.type.push.tip, knife-edge.push.tip, point.push.tip, pull.clamp, extension.rod) |
1.4-ISFDF100* | A(internal. sensor) | 100N | 0.05 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 6pcs(flat.push.tip, V.type.push.tip, knife-edge.push.tip, point.push.tip, pull.clamp, extension.rod) |
1.5-ISFDF200* | A(internal. sensor) | 200N | 0.1 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 6pcs(flat.push.tip, V.type.push.tip, knife-edge.push.tip, point.push.tip, pull.clamp, extension.rod) |
1.6-ISFDF500* | A(internal. sensor) | 500N | 0.1 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 6pcs(flat.push.tip, V.type.push.tip, knife-edge.push.tip, point.push.tip, pull.clamp, extension.rod) |
1.7-ISFDF1K* | B(external. sensor) | 1KN | 0.5 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 4pcs(flat.pushtip, adapter,pull.clamps) |
1.8-ISFDF2K* | B(external. sensor) | 2KN | 1 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 4pcs(flat.pushtip, adapter,pull.clamps) |
1.9-ISFDF5K* | B(external. sensor) | 5KN | 1 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 4pcs(flat.pushtip, adapter,pull.clamps) |
2.1-ISFDF10K* | B(external. sensor) | 10KN | 5 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 4pcs(flat.pushtip, adapter,pull.clamps) |
2.2-ISFDF20K* | B(external. sensor) | 20KN | 10 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 4pcs(flat.pushtip, adapter,pull.clamps) |
2.3-ISFDF50K* | B(external. sensor) | 50KN | 10 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 4pcs(flat.pushtip, adapter,pull.clamps) |
2.4-ISFDF100K* | B(external. sensor) | 100KN | 50 | 10%-100%. full.scale | ±0.5%.full.scale | 1pc | 1pc | 4pcs(flat.pushtip, adapter,pull.clamps) |
