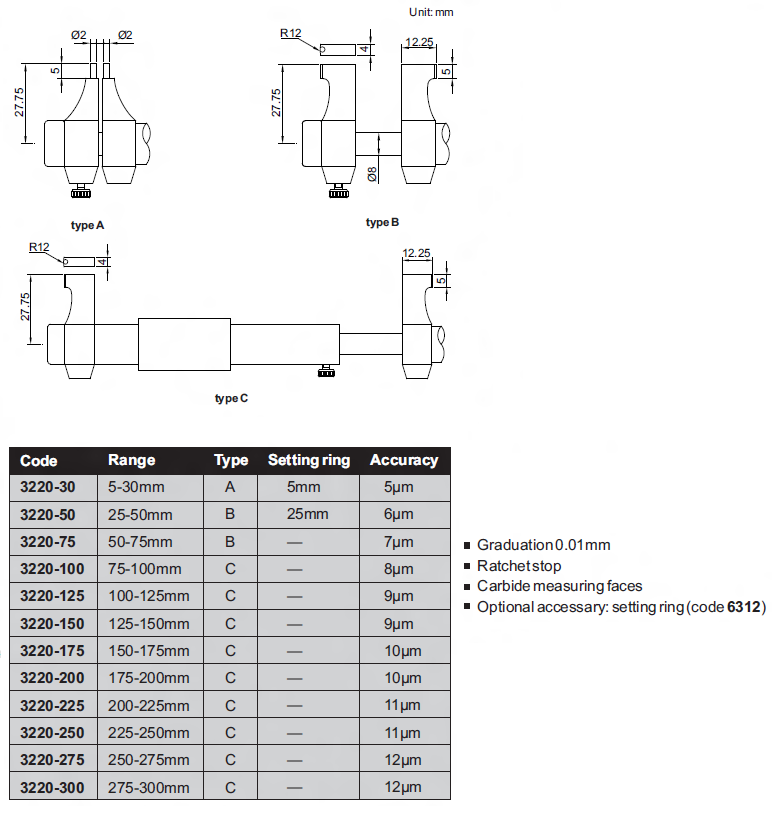

Model | Range | Type | Setting.ring | Accuracy |
---|---|---|---|---|
1.1-3220-30 | 5-30mm | A | 5mm | 5μm |
1.2-3220-50 | 25-50mm | B | 25mm | 6μm |
1.3-3220-75 | 50-75mm | B | . | 7μm |
1.4-3220-100 | 75-100mm | C | . | 8μm |
1.5-3220-125 | 100-125mm | C | . | 9μm |
1.6-3220-150 | 125-150mm | C | . | 9μm |
1.7-3220-175 | 150-175mm | C | . | 10μm |
1.8-3220-200 | 175-200mm | C | . | 10μm |
1.9-3220-225 | 200-225mm | C | . | 11μm |
2.1-3220-250 | 225-250mm | C | . | 11μm |
2.2-3220-275 | 250-275mm | C | . | 12μm |
2.3-3220-300 | 275-300mm | C | . | 12μm |
