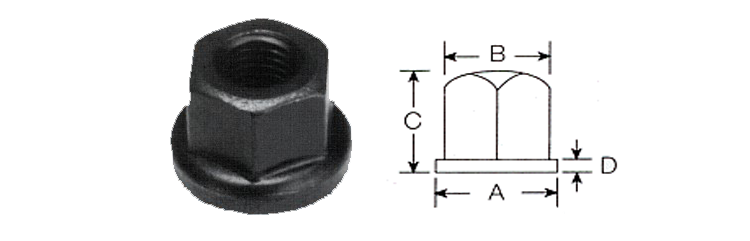

Model | Threading1 | Threading2 | A | B-IN | B-M/M | C-IN | D-IN |
---|---|---|---|---|---|---|---|
4512 | 5/16-18 | M8x1.25 | 3/4 | 9/16 | 13 | 3/8 | 3/32 |
4513 | 3/8-16 | M10x1.5 | 7/8 | 11/16 | 17 | 1/2 | 1/8 |
4514 | 2-12NC_1/2-13NC | M12x1.75 | 1-1/8_21 | 7/8 | 21 | 5/8 | 5/32 |
4514M | - | M14x2.0 | 1-1/8 | - | 21 | 5/8 | 5/32 |
4515 | 5/8-11 | M16x2.0 | 1-3/8 | 1-1/6 | 26 | 11/16 | 11/26 |
4516 | 3/4-10 | - | 1-5/8 | 1-1/4 | 32 | 1 | 1/4 |
4516A | M18x2.5 | 1-5/8 | - | 32 | 1 | 1/4 | M20x2.5 |
4516B | 1-5/8 | - | 32 | 1 | 1/4 | - | - |
4517 | 7/8-9 | - | 1-3/4 | 1-7/16 | 1-3/8 | 1-1/8 | 1/4 |
4518 | 1-8 | M24x3.0 | 2 | 1-5/8 | 41 | 1-1/4 | 1/4 |
