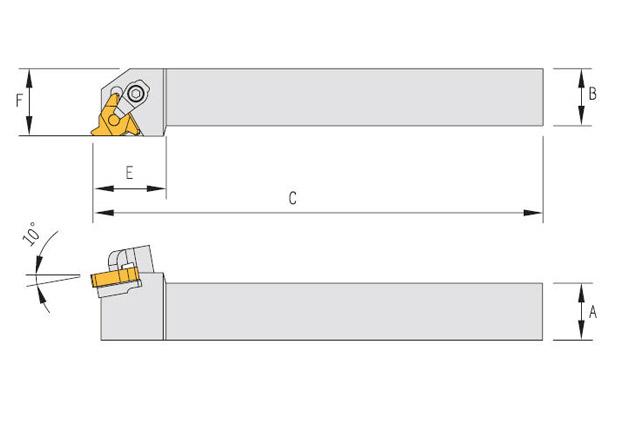

Model | Incert | A | B | C | E | F |
---|---|---|---|---|---|---|
CER/L1616H16 | 16ER/L | 16 | 16 | 100 | 22 | 20 |
CER/L2020K16 | 16ER/L | 20 | 20 | 125 | 22 | 25 |
CER/L2020K22 | 16ER/L | 25 | 25 | 150 | 25 | 32 |
CER/L2525M16 | 16ER/L | 32 | 32 | 170 | 32 | 40 |
CER/L2525M22 | 22ER/L | 20 | 20 | 125 | 22 | 36 |
CER/L3232P16 | 22ER/L | 25 | 25 | 150 | 35 | 32 |
CER/L3232P22 | 22ER/L | 32 | 32 | 170 | 34 | 40 |
Product Specifications
Order No. | Incert | Dimensions | Parts | Wrench | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Right / Left | A | B | C | E | F | Shim R | Shim L | |||||
CER/L1616H16 | 16ER/L | 16 | 16 | 100 | 22 | 20 | AE16 | AI16 | CS6-0308 | SP-CP16S | FT-15 | LW020 |
CER/L2020K16 | 16ER/L | 20 | 20 | 125 | 22 | 25 | AE16 | AI16 | CS6-0308 | SP-CP16S | FT-15 | LW020 |
CER/L2525M16 | 16ER/L | 25 | 25 | 150 | 25 | 32 | AE16 | AI16 | CS6-0308 | SP-CP16S | FT-15 | LW020 |
CER/L3232P16 | 16ER/L | 32 | 32 | 170 | 32 | 40 | AE16 | AI16 | CS6-0308 | SP-CP16S | FT-15 | LW020 |
CER/L2020K22 | 22ER/L | 20 | 20 | 125 | 22 | 36 | AIE22 | AIE22 | CS6-0308 | SP-CP22S | FT-15 | LW020 |
CER/L2525M22 | 22ER/L | 25 | 25 | 150 | 35 | 32 | AIE22 | AIE22 | CS6-0308 | SP-CP22S | FT-15 | LW020 |
CER/L3232P22 | 22ER/L | 32 | 32 | 170 | 34 | 40 | AIE22 | AIE22 | CS6-0308 | SP-CP22S | FT-15 | LW020 |
