Model | Insert | A | B | C | E | F |
---|---|---|---|---|---|---|
SER/L1010H16N | 16ER/L | 10 | 10 | 100 | 20 | 10 |
SER/L1212H16N | 16ER/L | 12 | 12 | 100 | 20 | 12 |
SER/L1616H16 | 16ER/L | 16 | 16 | 100 | 22 | 20 |
SER/L2020K16 | 16ER/L | 20 | 20 | 125 | 25 | 25 |
SER/L2020M22 | 16ER/L | 25 | 25 | 150 | 25 | 32 |
SER/L2525M16 | 16ER/L | 32 | 32 | 170 | 32 | 40 |
SER/L2525M22 | 16ER/L | 40 | 40 | 200 | 32 | 50 |
SER/L3232P16 | 22ER/L | 20 | 20 | 120 | 25 | 25 |
SER/L3232P22 | 22ER/L | 25 | 25 | 150 | 29 | 32 |
SER/L4040M22 | 22ER/L | 32 | 32 | 170 | 32 | 40 |
SER/L4040R22 | 22ER/L | 40 | 40 | 200 | 32 | 50 |

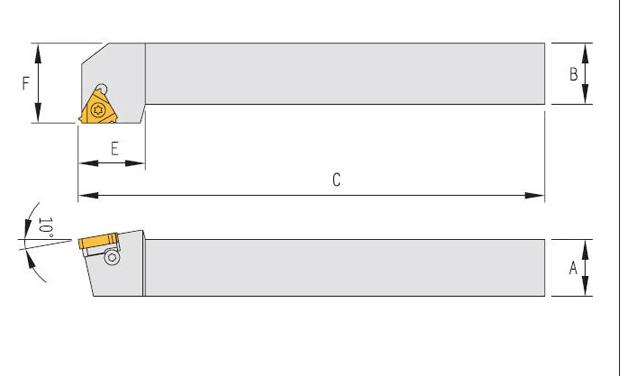

Product Specifications
Order No. | Insert | Dimensions | Parts | Wrench | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Right / Left | A | B | C | E | F | Shim R | Shim L | |||||
SER/L1010H16N | 16ER/L | 10 | 10 | 100 | 20 | 10 | AE16 | AI16 | CS35115H | CS6-0306 | FT-15 | LW025 |
SER/L1212H16N | 16ER/L | 12 | 12 | 100 | 20 | 12 | AE16 | AI16 | CS35115H | CS6-0306 | FT-15 | LW025 |
SER/L1616H16 | 16ER/L | 16 | 16 | 100 | 22 | 20 | AE16 | AI16 | CS35115H | CS6-0306 | FT-15 | LW025 |
SER/L2020K16 | 16ER/L | 20 | 20 | 125 | 25 | 25 | AE16 | AI16 | CS35115H | CS6-0306 | FT-15 | LW025 |
SER/L2525M16 | 16ER/L | 25 | 25 | 150 | 25 | 32 | AE16 | AI16 | CS35115H | CS6-0306 | FT-15 | LW025 |
SER/L3232P16 | 16ER/L | 32 | 32 | 170 | 32 | 40 | AE16 | AI16 | CS35115H | CS6-0306 | FT-15 | LW025 |
SER/L4040M22 | 16ER/L | 40 | 40 | 200 | 32 | 50 | AE16 | AI16 | CS35115H | CS6-0306 | FT-15 | LW025 |
SER/L2020M22 | 22ER/L | 20 | 20 | 120 | 25 | 25 | AE22S | AI22 | CS40115 | CS6-0408 | FT-15 | LW025 |
SER/L2525M22 | 22ER/L | 25 | 25 | 150 | 29 | 32 | AE22 | AI22 | CS40115 | CS6-0408 | FT-15 | LW025 |
SER/L3232P22 | 22ER/L | 32 | 32 | 170 | 32 | 40 | AE22 | AI22 | CS40115 | CS6-0408 | FT-15 | LW025 |
SER/L4040R22 | 22ER/L | 40 | 40 | 200 | 32 | 50 | AE22 | AI22 | CS40115 | CS6-0408 | FT-15 | LW025 |
