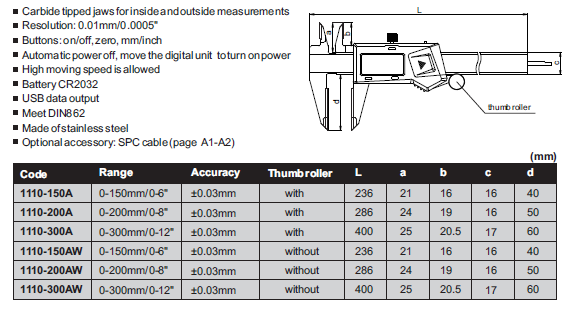

Model | Range | Thumb roller | Accuracy | L | a | b | c | d(mm) |
---|---|---|---|---|---|---|---|---|
1110-150A | ±0.03mm | 0-150mm/0-6" | with | 236 | 21 | 16 | 16 | 40 |
1110-150AW | ±0.03mm | 0-150mm/0-6" | without | 236 | 21 | 16 | 16 | 40 |
1110-200A | ±0.03mm | 0-200mm/0-8" | with | 286 | 24 | 19 | 16 | 50 |
1110-200AW | ±0.03mm | 0-200mm/0-8" | without | 286 | 24 | 19 | 16 | 50 |
1110-300A | ±0.03mm | 0-300mm/0-12" | with | 400 | 25 | 20.5 | 17 | 60 |
1110-300AW | ±0.03mm | 0-300mm/0-12" | without | 400 | 25 | 20.5 | 17 | 60 |
