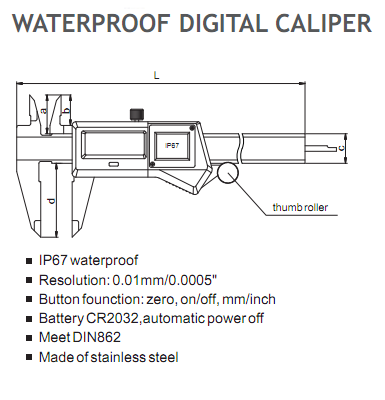

Model | Range | Accurancy | Thumb roller | L | a | b | c | d(mm) |
---|---|---|---|---|---|---|---|---|
1118-150 | 0-150mm/0-6" | ±0.03mm | with | 236 | 16 | 16 | 21 | 40 |
1118-150W | 0-150mm/0-6" | ±0.03mm | without | 236 | 16 | 16 | 21 | 40 |
1118-200 | 0-200mm/0-8" | ±0.03mm | with | 286 | 16 | 19 | 24 | 50 |
1118-200W | 0-200mm/0-8" | ±0.03mm | without | 286 | 16 | 19 | 24 | 50 |
1118-300 | 0-300mm/0-12" | ±0.03mm | with | 400 | 17 | 20.5 | 25 | 60 |
1118-300W | 0-300mm/0-12" | ±0.03mm | without | 400 | 17 | 20.5 | 25 | 60 |
